Building a data vault

Overview

This document demonstrates how to implement a simple Data Vault model in Matillion ETL using the following three-tier data architecture:

Staging: transient data, loaded either fully or incrementally from external sources
Data Vault: the middle tier data structures (i.e. the enterprise data warehouse)
Star Schema: the data presentation layer, for use in reporting and analytics

Data vault architecture

Important Information

This document utilises a publicly available civil aviation dataset throughout, and this is available for download as part of this document.
Data Vault techniques have been used to model the middle tier, rather than an alternative such as third normal form (3NF).

Data Vault Explained

A Data Vault is a data modeling approach, typically used to design relational tables in an enterprise data warehouse. A specialised form of 3NF modeling, a Data Vault requires all objects to be broken down into their base parts and assumes all relationships may be many-to-many. This approach addresses some of the limitations of other commonly used approaches:

Two-tier ("Kimball" style): considered inflexibile and costlier to maintain
3NF middle tier: can be difficult to adapt to business changes, especially when source systems are altered, and can become abstract and difficult to interpret

A Data Vault primarily focuses on the core concepts of the underlying business. In the example, these concepts include "flight", "airport", "passenger" and "aircraft". These are broken down into their base parts, and these parts are defined by three types of relational database tables, namely Hub, Link and Satellite tables.

Relational Database Tables

Hub

Link

Satellite

Hub tables represent the central theme of a relationship.

Records are identified by a natural business key, expressed in a way that anyone working in the business could understand—for example, an "aircraft" would be uniquely identified by its tail number (multi-part identifier can also be used).

Link tables represent links between Hubs, like 3NF intersection / "associative" entities.

Records are uniquely identified by two or more Hub table surrogate keys, differentiated by contextual data—for example, a "flight" would always be taken by exactly one aircraft.

In contrast, a 3NF model would require an aircraft ID as a foreign key column on the flight table, meaning any changes could complicate the model and require abstract concepts with difficult to enforce data quality rules.

Satellite tables are used to record the context or attributes of a Hub or Link.

Satellite tables only ever related to a single Hub or Link table. However, a Hub table may have multiple Satellite tables, which is especially useful when data is sourced from multiple places—for example, to record the departure and arrival times of a flight, both scheduled and actual.

Unlike a 3NF model, new Satellite tables can also be added when source systems change, without additional expense or needing to back-fill data.

Hub columns include:

Natural business key: unambiguous, easy to understand unique identifier
Surrogate key: used to simplify joins
Timestamp: when the entity was first recorded
Source Name: name of the system from which the entity was sourced

Link columns include:

Hub table surrogate keys: surrogate keys of the Hub tables being linked
Surrogate key: enables the addition of a Satellite, if necessary
Timestamp: when the data was first recorded
Source Name: name of the system from which the data was sourced

Satellite columns include:

Context / Attribute: the context or attribute of the Hub or Link table
Timestamp: when the context or attribute was first recorded
Source Name: name of the system from which the context or attribute was sourced

Data Models

Two of the core business concepts in aviation are "aircraft" and "airport". These are clearly important, widely used and understood, and easy to identify—thus should be modelled as Data Vault Hub entities.

Every flight always involves one aircraft, and is always scheduled to leave from a departure airport, bound for an arrival airport. Thus, it would be possible to model the "flight" area as a Link table joining aircraft and airport Hubs, as illustrated below:

Data Model

While this would be a good start in a 3NF model, it may undermine the importance of the "flight" concept. However, how would it connect to passengers and what if the flight was diverted or cancelled?

There are many occasions when an entity could be modelled as either a Hub or a Link. However, in this example, a "flight" is a core business concept and therefore should be modelled as a Hub. With Link and Satellite tables added, the flight setup would look more like the following example:

Data Vault Flight Model

Presentation Layer Data Model

Now that the "data warehouse" part of the model is established, the next thing to consider is how this data is used in reporting. Focusing on just the "flight" area, how could this be designed for a star schema to best support queries?

There is a clear justification for a "flight" fact table—supporting queries such as "flights by date", "origin", "destination" and "aircraft type"; core attributes such as flight times; and calculated columns such as a "delayed" flag. Calculated columns would be set according to business rules (such as actual versus scheduled flight times), and would be perfect for enabling analysis or measuring key performance indicators (KPI).

However, from the passenger's point of view, a "flight" is seen as more of a "dimension", and would be involved in queries like "passengers by route". If a flight fact already has two-tier data architecture, there is no flexibility—requiring maintenance and a new "dimension" version. In addition, this incurs a further cost to maintain calculated columns in two places (answering how many passengers were on delayed flights) as well as the added risk that the rule defining "delayed" may need to be implemented differently in different places.

Presentation Layer Data Model

Conversely, deriving the flight's "delayed" flag from the Data Vault layer allows it to be used in any number of different star schema configurations. This would include both Type 1 and Type 2 (time variant) versions of the same data. All star schema objects can be derived from the Data Vault structures. The star schema design itself (a bus matrix) can then be altered as needed without significant rework. In fact, the star schema doesn't even need to be physically materialised, as it can simply be made up of a layer of views.

Matillion Implementation

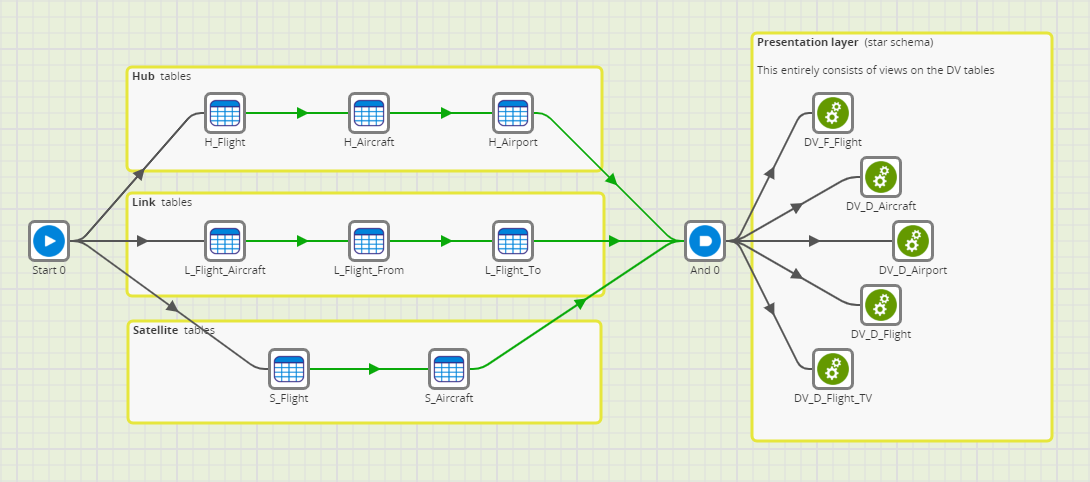

DV DLL

As with most Matillion ETL implementations, a standalone job to be run once (only), which creates the permanent Redshift objects—namely Data Vault and star schema. For ease of reading, the Data Vault tables in the example are grouped into Hubs, Links and Satellites. Once the tables have been created, the corresponding star schema views can be added.

Since the Hub and Link tables are very narrow, there's a strong argument for distributing these across all nodes rather than by the hub surrogate key. This is a tuning option that you should consider when planning the physical layout of the Data Vault.

Please Note

The Orchestration Job used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 1 - Setup → DV DLL.

Extract and Load

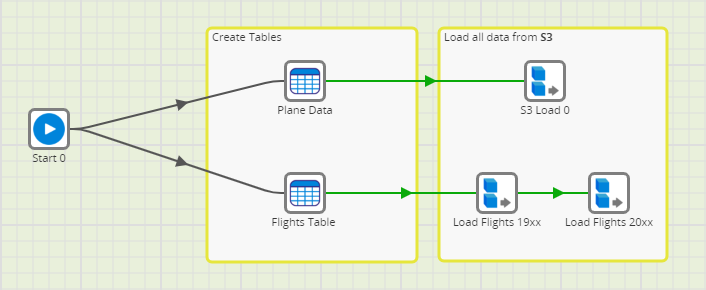

DV Extract and Load data

In the example, data is extracted and loaded from the sample flight and plane data set provided by Matillion ETL, available via Amazon S3. However, other implementations will almost certainly be an incremental load, and probably taken from a variety of data sources.

Please Note

The Orchestration Job used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 2 - EL → DV Extract and Load data.

Transform

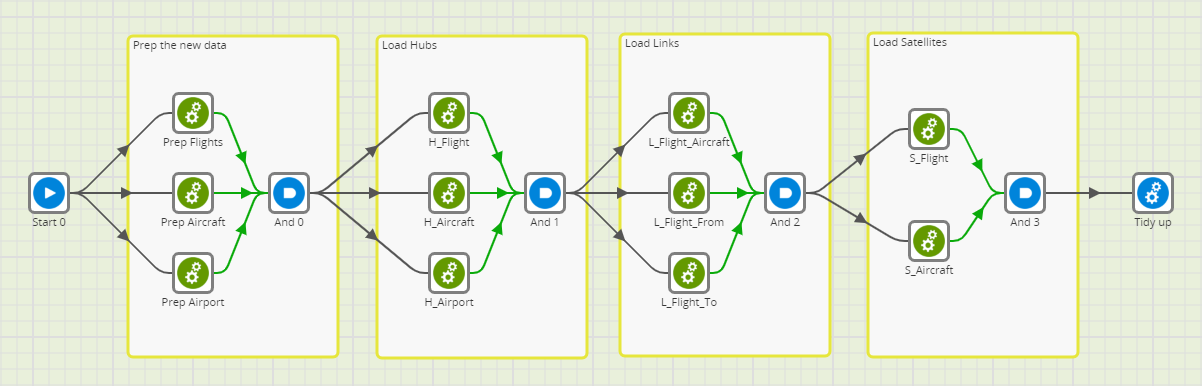

DV AAA Xforms

Once extraction and loading is complete, the current (or incremental) data will become available in the staging area as database tables—namely Preparation, Hub Load, Link Load and Satellite Load. The data is then divided It can then be transformed into shape using Transformation Jobs.

Please Note

The Orchestration Job used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 3 - T → DV AAA Xforms.
In the example, no distinction has been made between "raw" and "business" Data Vault structures. The derivations and business rules are applied at the same point—during initial data preparation.

Preparation

In the Preparation stage, the transformation involves two main steps:

Ensure the data is fit for ingestion into the Data Vault—with clear business keys, no duplicates and business rules enforced to set any missing values
Derivation of extra information—for example, the "delayed" flag is present on every flight

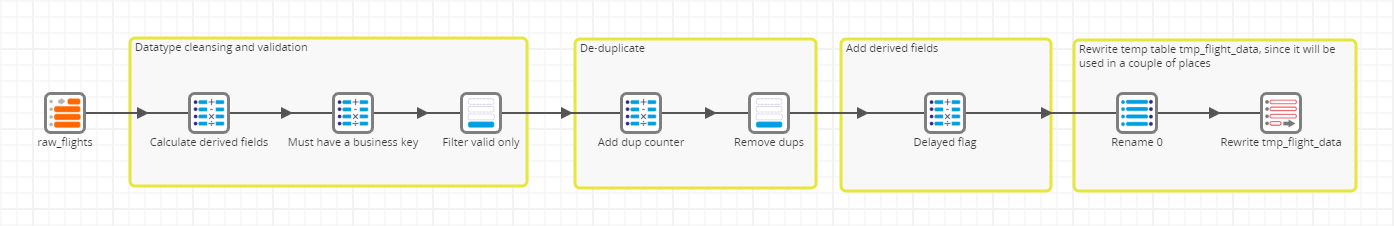

DV Prep Flights

The flight data preparation is fairly typical, using the Calculator component to tidy up datatypes and apply business rules. Deduplication is performed using Redshift's ROW_NUMBER() analytic function inside a Calculator component.

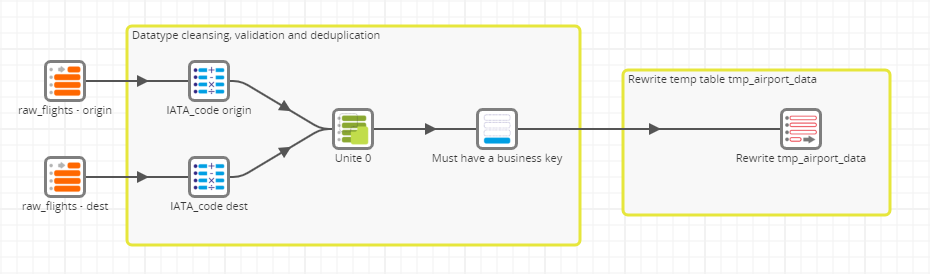

DV Prep Airport

The airport data load then uses the Unite component (and its Remove duplicates property) to get Redshift to do the hard work of removing duplicate data.

Please Note

The Transformation Jobs used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 3 - T → DV Prep Flights and DV Prep Airport.

Hub Load

All Hub tables can be loaded in parallel since Data Vault guarantees there are no inter-dependencies between them. In the example, the airport Hub load is a typical example, and illustrates some commonly used techniques.

Please Note

As mentioned earlier in this document, the purpose of a Hub table is to keep a permanent record of a natural business key and the central theme of a relationship. The most important technical factor, then, is to ensure that the business key is recorded correctly and there are no duplicates.

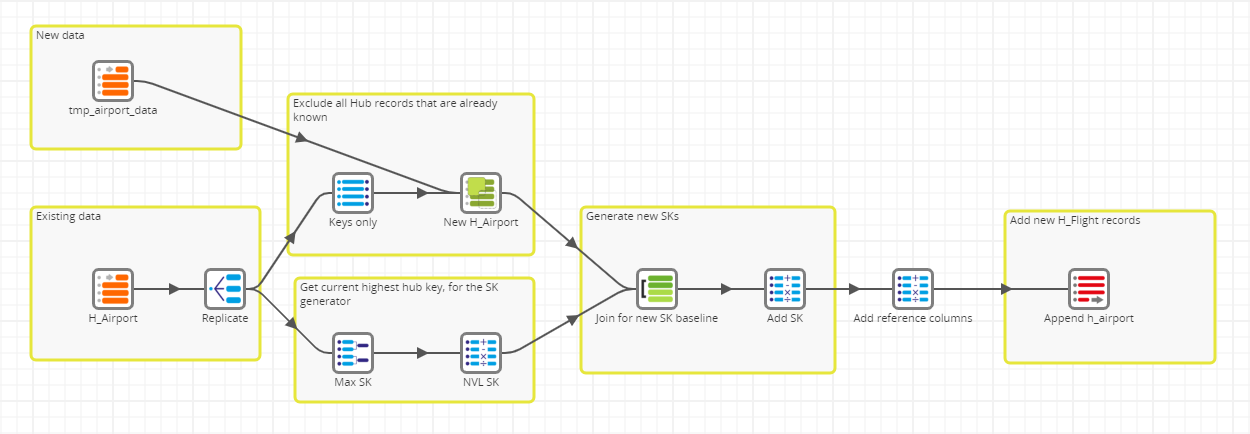

DV xforms H_Airport

The Except component entitled "New H_Airport" guarantees uniqueness by getting Redshift to do the hard work of filtering out all airport records which are already known and present. This ensures incremental loads do not create duplicates.

New surrogate keys are created using a combination of an analytic ROW_NUMBER function and a SQL MAX to find the largest surrogate key already present. This removes the need for an identity column, and ensures there are no gaps in the surrogate key sequence.

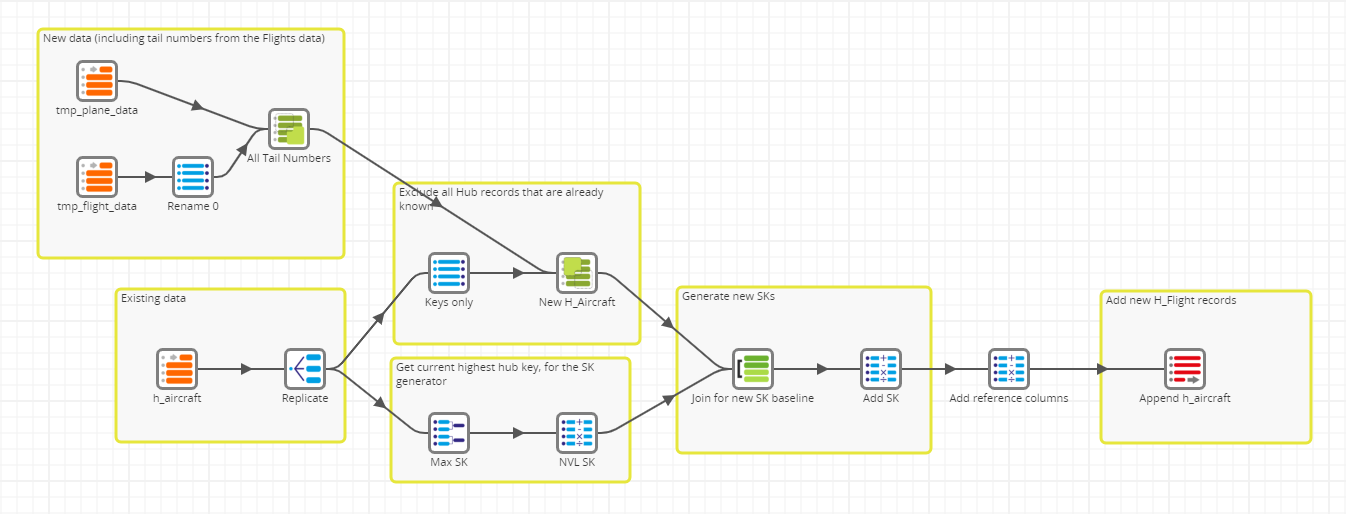

DV xforms H_Aircraft

The aircraft Hub load follows a very similar pattern, but includes a Unite component to include aircraft involved in flights but not present in the aircraft reference data.

The example also illustrates how Matillion deals with late arriving dimensions in a Data Vault model. It neatly avoids the problems of having to make retroactive changes that can occur with two-tier data architecture.

Please Note

The Transformation Jobs used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 3 - T → DV xforms H_Airport and DV xforms H_Aircraft.

Link Load

New records in all the Link tables can be added once the Hub updates are completed. They can then all be loaded in parallel since Data Vault guarantees there are no inter-dependencies.

Link load transformations typically start with the records which identify the relationship, and join to two or more Hub tables to acquire the necessary surrogate keys.

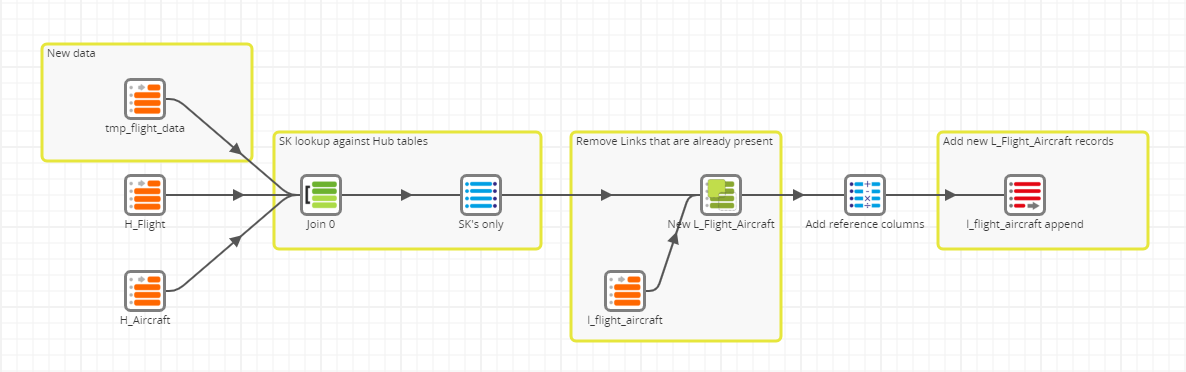

L_Flight_Aircraft

If the relationship changes over time, there will be no issues adding multiple Links between the same Hub tables. The load_timestamp column can always be used to find the latest relationship. Alternatively, a Satellite table could be used to provide additional context and full-time variance.

Please Note

The Transformation Jobs used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 3 - T → L_Flight_Aircraft.

Satellite Load

The final stage of the Data Vault load, and often the largest, is the Satellite table update. It is made up of two main features:

Join to the Hub table to utilise its surrogate key
Compare with the latest Satellite record for any changes

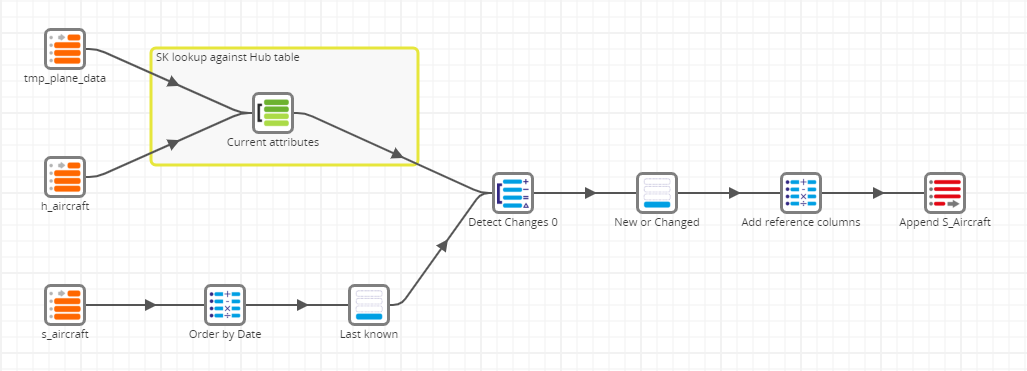

DV Xforms S_Aircraft

The order of the loads guarantees that every necessary Hub table is already in place, so the Hub table join can be inner.

A Detect Changes component is used to compare newly loaded, current columns against the latest version of the Satellite data. Only new or changed records are relevant, so these are filtered before being appended into the "s_flight" table. Inserts take advantage of an identity column to provide a unique identifier. The resulting data captures how contextual data related to the Hub has changed over time, and enables the automatic creation of time variant dimensions.

Please Note

The Transformation Jobs used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 3 - T → DV Xforms S_Aircraft.

Star Schema implementation

The middle-tier Data Vault structures are just ordinary relational database tables, and could be queried directly for reporting purposes. But it's usually more convenient for end-users to use a star schema presentation layer. The Data Vault contains enough information to build these structures. This could easily be accomplished by writing some more Transformation Jobs and running them once the Data Vault loads have completed. However, there is actually no need to physically materialise any data at all.

The following example demonstrates how to set up a layer of views which look like star schema tables, but in fact have zero maintenance cost, zero storage costs and high flexibility. This is done by having dimensional views based on the same underlying data, representing three different "viewpoints"—namely a type 1 dimension, a type 2 dimension and a fact table.

Please Note

The Transformation Jobs used in this example can be opened via the Navigation Panel by clicking Data Vault Example → DV 1 - Setup → Presentation → DV_D_Flight, DV_D_Flight_TV and DV_F_Flight.

D_Flight: a type 1 dimension

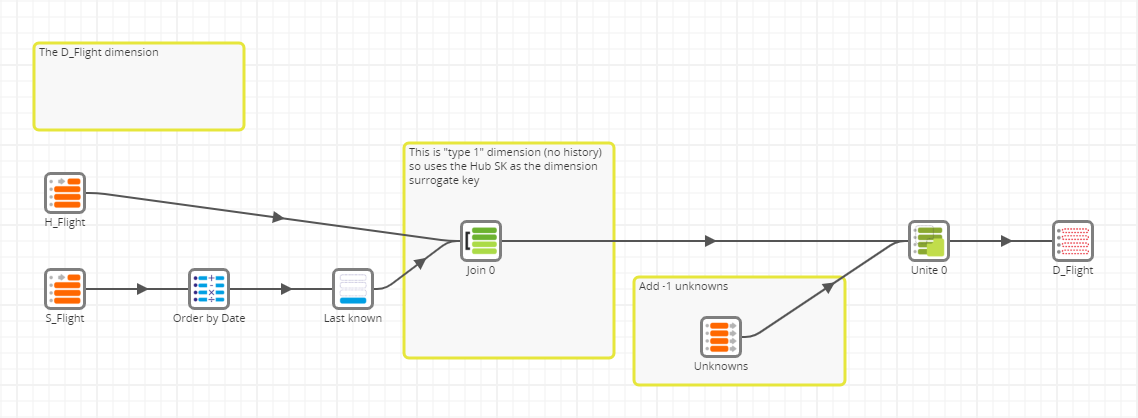

DV_D_Flight

This dimension simply shows the latest contextual information for every flight. It uses an analytic function to filter the "S_Aircraft" Satellite to only show the most recent data. Since this will guarantee there will be only one record per Hub, the dimension surrogate key can simply be the Hub's surrogate key. This information will be used later when populating the fact table. A Fixed Flow component is also used to add the fixed, special-purpose value -1 meaning "unknown".

D_Flight_TV: a type 2 dimension

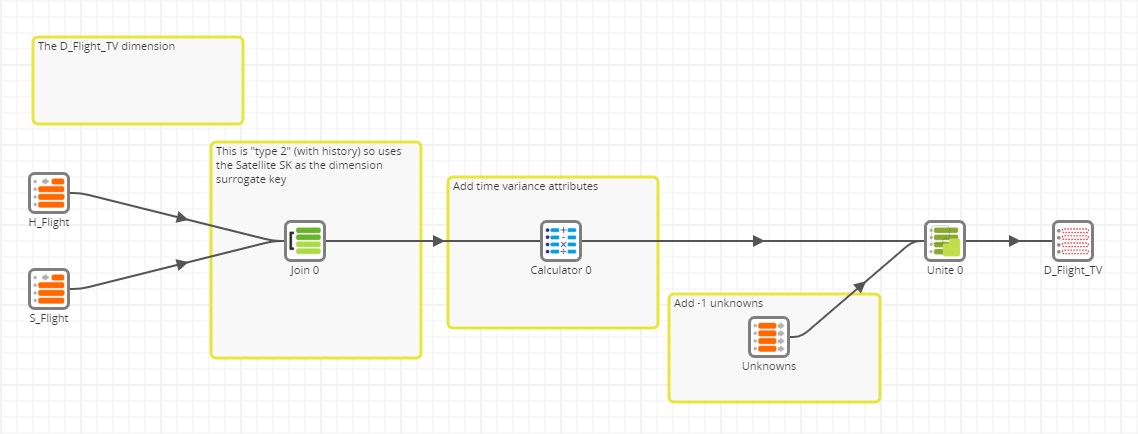

DV_D_Flight_TV

This dimension is time variant, meaning there are separate records for every version of a flight recorded over time. The data flow is actually simpler than the non-time-variant version, because it can use every Satellite record, taking advantage of the associated timestamp to derive the time variance attributes.

A Calculator component contains analytic functions to create three extra time variance columns for every row:

Version: uses ROW_NUMBER and is ordered by the record timestamp
Valid To: uses LEAD and is ordered by timestamp, subtracting one second from the next timestamp in the series
Current Flag: uses ROW_NUMBER and sets to Y only if it is the last update in the sequence

This will alleviate any overlapping time-ranges, multiple "current" records and other data integrity issues, especially those associated with manually maintained time-variant dimensional structures.

Please Note

As there may be multiple versions over time, the dimension surrogate key must be the Satellite's surrogate key.

F_Flight: a fact table

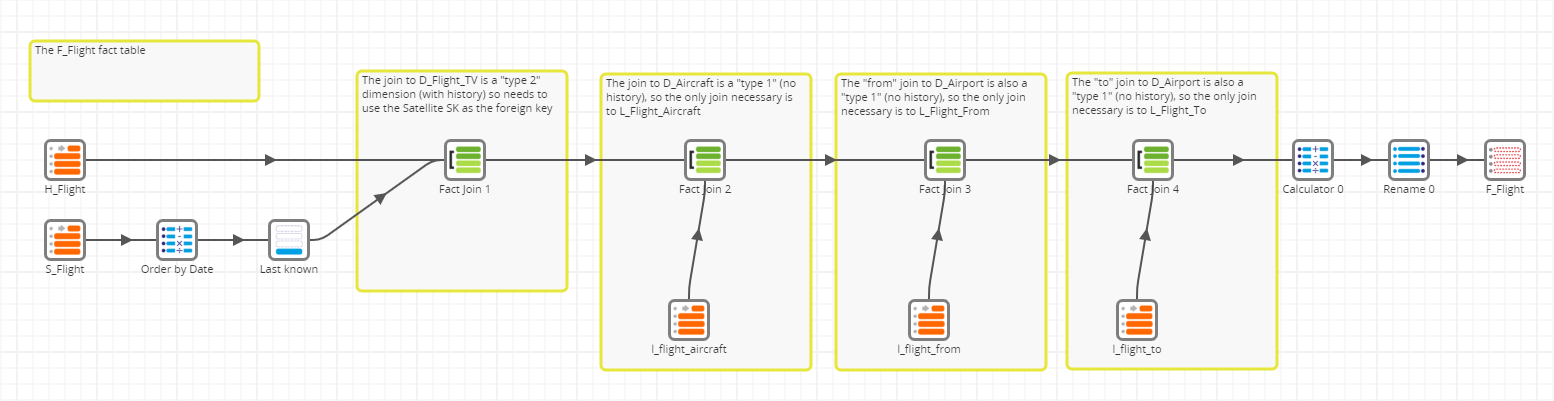

DV_F_Flight

This creates a flight fact table from the same Data Vault structures and follows a similar pattern to the dimensions. The H_Flight table then defines the granularity, guaranteeing there will always be exactly one fact record per flight.

Two different join techniques are needed to set up the foreign keys to the dimensions:

For time-variants dimension, such as "D_Flight_TV", it is necessary to use the latest Satellite record (earlier the Satellite table's surrogate key was used as the dimension key).
For non-time-variant dimensions, it is sufficient to left-join to the relevant Data Vault Link table. This contains the associated Hub surrogate key (used earlier as the dimension key).

Summary

At this point, you now have a fully functional three-tier data warehouse, using:

A Data Vault model as the middle tier
A star schema presentation layer, made entirely of views, which requires no storage, loading or maintenance
